No Answers Yet For Problems With ASV

General Discussion on any topic relating to CPAP and/or Sleep Apnea.
User avatar
Mr Bill
Posts: 532
Joined: Fri Feb 18, 2011 11:56 pm
Location: Grand Junction, CO

Re: An answer for low self initinated breathing on ASV??

Post by Mr Bill » Sat Jul 02, 2011 1:02 am

Paper_Nanny wrote: MSD talked to Bob, the Respironics Rep for much of the state of Oregon. Bob did in fact say I should be on a straight BiPAP, with no ASV. Why does this make sense? According to Bob, the the ASV is causing me to hyperventilate. That causes the CO2 level in my blood to go down, supressing the urge to breathe. When the CO2 level goes up, then I breathe. But, the ASV thinks I should be breathing sooner than that and triggers a breath. Thus, the PTB rate goes down after the first few hours of sleep.

Why does the ASV do that? Doesn't the algorithm figured out how fast I was breathing and time the breaths accordingly? According to Bob, that isn't quite right. The algorithm was deisgned for people with Cheyne-Stokes Respiration and CSA secondary to the use of opiods. It works great for people with that sort of SDB, but not for people like me.
OK, I am going to take a stab at explaining this from the existential participant point of view. This is the view where I try to extrapolate my existential relationship with my own ASV into the patterns I see you having.

First, I think ASV's like the patient to have a regular well spaced breathing pattern because they are designed to break up patterns of periodic breathing. So, if you have an erratic pattern of breaths due to your MS then the ASV will keep intervening to regularize the pattern.

Second, Although the patient initiated breath graph looks horrible under full ASV control, I think probably, its not as bad as it appears. The ASV decides what your "breath timing slots" should be after measuring your average breath rate and tidal volume and probably some other timing and flow rate factors and I think it probably does some sort of predictive filtering sort of like a moving average to guess when the next breath should be. Just because it nudges you to start a breath does not mean it pushes in the whole breath. I've noticed with mine that it starts the breath but it does not follow through come hell or high water unless, unless, I persist in not breathing, then the pressure ramps up. Now pressure can ramp up both to open the airway and to inflate lung. I'm not at all informed how much more pressure differential is needed to inflate the lungs if we just lay there like a dead fish. But my RT says an ASV will actually do it if set to have a backup rate. So the patient initiated breath graph is probably a moving average. as the percentage drops with each "missed time slot". You may actually be doing 90% of the work even if you are doing 0% of the breath initiation. However, estimating that percentage of effort is probably not very easy or accurate outside of a lab. So, you see the Respironics rep is saying 'its not desirable but probably not harmful'. I suppose the only way to know for sure would be if the polysonmography could actually measure your exertion during sleep.

Third, it may be that you are having alpha wave intrusion (mild arousals while unconscious during sleep) because of these breath initiations which are making you feel less rested even though your AHI is looking pretty good.

Fourth, possibly you feel better with the recently tried BIPAP mode because you got to set your own breathing rhythm but the ASV logs every deviation from a steady train of pulses as hyponeas or clear airway apneas.

Fifth, its probably a good thing in the long run that the ASV tries to enforce a steady pattern of breaths no matter what causes breathing to be erratic. It took me months to get used to breathing 18 bpm when my natural rate is closer to 8. But I have gotten there and I keep sleeping better and better.

Now to the answer phase. I have to confess I wish I could sleep deeper most of the time. It has taken me 4 months to get over 4.5 hours a night and now my average after 7 months (just for the last 3 months) is 6.5 hours. But I can tell that I need to sleep deeper and longer. Its too easy to get woke up. I'll hazard that the ASV can treat your symptoms better than a BIPAP if the ASV could be adjusted to the widest possible leeway in breath variability. I believe somebody already mentioned that the inspiration time had to be less than 3 seconds to make the ASV happy. I wonder if setting your Inspiration time to the max would help? Also, since you have an average BPM of around 10 maybe setting a backup rate at 8 (ask Dr and RT if this is OK). On auto, maybe the unit is trying to speed you up to some default value. Finally, the rise time can be set higher, if I understand correctly, rise time is how quickly the ASV tries to bump up the pressure for an individual breath. Maybe if it is constrained to rise slowly, it will be less disturbing to your sleep as it tries to correct you to an even pattern. Lastly, I think you may start feeling more refreshed over time. I know my own experience after the first rush of getting sleep was to then realize for several months how much I needed it and how little I was getting. Maybe with time your sleeping mind will start accepting the ASV's nudges and not be aroused and then you will start really sleeping.

So, I'm not a medical doctor but I think you need the ASV in the long haul.

Edited for truth in advertising...
Last edited by Mr Bill on Sun Jul 03, 2011 12:38 am, edited 2 times in total.
EPAP min=6, EPAP max=15, PS min=3, PS max=12, Max Pressure=30, Backup Rate=8 bpm, Flex=0, Rise Time=1,
90% EPAP=7.0, Avg PS=4.0, Avg bpm 18.3, Avg Min vent 9.2 Lpm, Avg CA/OA/H/AHI = 0.1/0.1/2.1/2.3 ... updated 02/17/12

User avatar
NotMuffy
Posts: 962
Joined: Wed Sep 16, 2009 6:56 am
Location: Dunno. GPS is dead.

Re: An answer for low self initinated breathing on ASV??

Post by NotMuffy » Sat Jul 02, 2011 4:01 am

Paper_Nanny wrote:
NotMuffy wrote:You should also get a set of Maximum Inspiratory and Expiratory Pressures. Arrange this beforehand to insure they get the "thing".
Which "thing"?
The Negative Inspiratory Force Meter:

http://www.boehringerlabs.com/products/ ... l-4102.php

Ask what the range of their NIF Meter is. At this point you could be normal and knock out a 120 cmH2O. While Boehringer makes a good product, you need to use their "High Range" (Model 4103) if you're pretty healthy, and the 4102 if more sensitivity is needed in the face of disease progression.

Regardless, Respiratory Muscle Assessment is a key component of the workup, and this is the "thing" to do it with.
"Don't Blame Me...You Took the Red Pill..."

User avatar
NotMuffy
Posts: 962
Joined: Wed Sep 16, 2009 6:56 am
Location: Dunno. GPS is dead.

Re: An answer for low self initinated breathing on ASV??

Post by NotMuffy » Sat Jul 02, 2011 4:08 am

Mr Bill wrote:...but I think Muffy is right, you need the ASV in the long haul.
Where did Muffy say that?
"Don't Blame Me...You Took the Red Pill..."

User avatar
NotMuffy
Posts: 962
Joined: Wed Sep 16, 2009 6:56 am
Location: Dunno. GPS is dead.

Re: An answer for low self initinated breathing on ASV??

Post by NotMuffy » Sat Jul 02, 2011 5:09 am

BrianinTN wrote:
Paper_Nanny wrote:
avi123 wrote:Question: are the Hypopneas distinguished during PSG if Central or Obstructive?[/color]
I don't see anywhere that distinction is made, but I may be missing something.
No, you aren't missing anything. Quoting yet another email from my RPSGT friend, who was grumbling about this very issue:
"...older style of designating events, which was more precise, where events are categorized as obstructive, central, or mixed in addition to the designation of apnea, hypopnea, RERA... but they don't officially recognize those multidesignations anymore"
Perhaps if your RPSGT friend actually read the Scoring Manual they wouldn't grumble so much.

The VIII.4.B Note 2 for hypopneas says you can score whatever you want as long as you know WTF you're talking about.
"Don't Blame Me...You Took the Red Pill..."

User avatar
avi123
Posts: 4509
Joined: Tue Dec 21, 2010 5:39 pm
Location: NC

Re: An answer for low self initinated breathing on ASV??

Post by avi123 » Sat Jul 02, 2011 9:31 am

This post really does not belong here but let me try to post it and see if there are takers.


Question to NotMuffy: are Hypopneas distinguished during PSGs if Central or Obstructive?

NotMuffy Reply to Nanny:

The VIII.4.B Note 2 for hypopneas says you can score whatever you want as long as you know what the hell [corrected] you're talking about
***************************************

Well, I see this in the literature:

Here is how an astute PSG technician could distinguish between Obstructive and Central Hypopnea:



This is what NotMuffy Image possibly meant by the kind of Sleep Center that you might find yourself in, i.e. capable to check for central apnea or not. Most don't.


Source:

http://pats.atsjournals.org/cgi/reprint/5/2/226

_________________
Humidifier: S9™ Series H5i™ Heated Humidifier with Climate Control
Additional Comments:  S9 Autoset machine; Ruby chinstrap under the mask straps; ResScan 5.6
Last edited by avi123 on Sat Jul 02, 2011 8:38 pm, edited 5 times in total.
see my recent set-up and Statistics:
http://i.imgur.com/TewT8G9.png
see my recent ResScan treatment results:
http://i.imgur.com/3oia0EY.png
http://i.imgur.com/QEjvlVY.png

User avatar
Paper_Nanny
Posts: 430
Joined: Fri Apr 15, 2011 3:52 pm
Location: Southern Oregon

Re: An answer for low self initinated breathing on ASV??

Post by Paper_Nanny » Sat Jul 02, 2011 4:31 pm

NotMuffy wrote:
Paper_Nanny wrote:Which "thing"?
The Negative Inspiratory Force Meter
Thanks. I will give them a call next week and ask about that. I appreciate the tip.

Deborah

_________________
Mask: FitLife Total Face CPAP Mask with Headgear
Humidifier: DreamStation Heated Humidifier
Additional Comments: DreamSTation DSX500
PR System One BiPAP Auto SV Advanced

User avatar
avi123
Posts: 4509
Joined: Tue Dec 21, 2010 5:39 pm
Location: NC

Re: An answer for low self initinated breathing on ASV??

Post by avi123 » Sat Jul 02, 2011 5:20 pm

Paper_Nanny wrote:
avi123 wrote:Question: are the Hypopneas distinguished during PSG if Central or Obstructive?[/color]
I don't see anywhere that distinction is made, but I may be missing something.
avi123 wrote:Question: Isn't an ASV a bad choice for an MS patient?
Why would they necessarily be a bad choice for someone with MS? The areas of damage that can occur in MS are so incredibly variable that I don't think blanket questions like that make much sense.

Can you add some detail to your question, such as, "Isn't an ASV a bad choice for someone with MS who has________?" That would make more sense.

Deborah
Check this:

"VPAP Adapt SV is not appropriate for patients who: 1. Have chronic and profound hypoventilation, moderate to severe COPD (chronically elevated PCO2 on Arterial Blood Gas {ABG} >45mmHg) or restrictive thoracic or neuromuscular disease."

Isn't Multiple sclerosis = neuromuscular disease


Link:

http://binarysleep.com/phpBB2/viewtopic ... 76d933ce61

by RPSGT88




_________________
Humidifier: S9™ Series H5i™ Heated Humidifier with Climate Control
Additional Comments:  S9 Autoset machine; Ruby chinstrap under the mask straps; ResScan 5.6
see my recent set-up and Statistics:
http://i.imgur.com/TewT8G9.png
see my recent ResScan treatment results:
http://i.imgur.com/3oia0EY.png
http://i.imgur.com/QEjvlVY.png

User avatar
Paper_Nanny
Posts: 430
Joined: Fri Apr 15, 2011 3:52 pm
Location: Southern Oregon

Re: An answer for low self initinated breathing on ASV??

Post by Paper_Nanny » Sat Jul 02, 2011 9:22 pm

avi123 wrote:
Paper_Nanny wrote:Can you add some detail to your question, such as, "Isn't an ASV a bad choice for someone with MS who has________?" That would make more sense.
Check this:

"VPAP Adapt SV is not appropriate for patients who: 1. Have chronic and profound hypoventilation, moderate to severe COPD (chronically elevated PCO2 on Arterial Blood Gas {ABG} >45mmHg) or restrictive thoracic or neuromuscular disease."
So your original question could have been: Isn't an ASV a bad choice for someone with MS who has thoracic restriction?

And my answer, which is not so original because it is based on gleaning the results of other people's research, is: Yes, for people with thoracic restrictive disorders such as chest wall deformities or neuromuscular diseases, an ASV would be a bad choice.

I have every reason to believe my thorax is free roaming, running willy nilly with no restrictions. Conseuqently, I have no reason to think that In my case, using an ASV is contraindicated because of thoracic restriction.

Deborah

_________________
Mask: FitLife Total Face CPAP Mask with Headgear
Humidifier: DreamStation Heated Humidifier
Additional Comments: DreamSTation DSX500
PR System One BiPAP Auto SV Advanced

User avatar
BleepingBeauty
Posts: 2454
Joined: Thu Apr 02, 2009 5:30 pm
Location: Aridzona ;-)

Re: An answer for low self initinated breathing on ASV??

Post by BleepingBeauty » Sat Jul 02, 2011 10:06 pm

Paper_Nanny wrote:
avi123 wrote:
Paper_Nanny wrote:Can you add some detail to your question, such as, "Isn't an ASV a bad choice for someone with MS who has________?" That would make more sense.
Check this:

"VPAP Adapt SV is not appropriate for patients who: 1. Have chronic and profound hypoventilation, moderate to severe COPD (chronically elevated PCO2 on Arterial Blood Gas {ABG} >45mmHg) or restrictive thoracic or neuromuscular disease."
So your original question could have been: Isn't an ASV a bad choice for someone with MS who has thoracic restriction?

And my answer, which is not so original because it is based on gleaning the results of other people's research, is: Yes, for people with thoracic restrictive disorders such as chest wall deformities or neuromuscular diseases, an ASV would be a bad choice.

I have every reason to believe my thorax is free roaming, running willy nilly with no restrictions. Conseuqently, I have no reason to think that In my case, using an ASV is contraindicated because of thoracic restriction.

Deborah


I love how you express yourself, Deborah! You're a hoot!
Veni, vidi, Velcro. I came, I saw, I stuck around.

Dx 11/07: AHI 107, central apnea, Cheyne Stokes respiration, moderate-severe O2 desats. (Simple OSA would be too easy. ;))

PR S1 ASV 950, DreamWear mask, F&P 150 humidifier, O2 @ 2L.

User avatar
Mr Bill
Posts: 532
Joined: Fri Feb 18, 2011 11:56 pm
Location: Grand Junction, CO

Re: An answer for low self initinated breathing on ASV??

Post by Mr Bill » Sun Jul 03, 2011 12:18 am

NotMuffy wrote:
Mr Bill wrote:...but I think Muffy is right, you need the ASV in the long haul.
Where did Muffy say that?
NotMuffy definitely did not say that! I'm not quite sure how I transmorgified your comments into that conclusion from your techno questions above. Sorry about that.
EPAP min=6, EPAP max=15, PS min=3, PS max=12, Max Pressure=30, Backup Rate=8 bpm, Flex=0, Rise Time=1,
90% EPAP=7.0, Avg PS=4.0, Avg bpm 18.3, Avg Min vent 9.2 Lpm, Avg CA/OA/H/AHI = 0.1/0.1/2.1/2.3 ... updated 02/17/12

User avatar
NotMuffy
Posts: 962
Joined: Wed Sep 16, 2009 6:56 am
Location: Dunno. GPS is dead.

Re: An answer for low self initinated breathing on ASV??

Post by NotMuffy » Sun Jul 03, 2011 3:37 am

avi123 wrote:Check this:

"VPAP Adapt SV is not appropriate for patients who: 1. Have chronic and profound hypoventilation, moderate to severe COPD (chronically elevated PCO2 on Arterial Blood Gas {ABG} >45mmHg) or restrictive thoracic or neuromuscular disease."

Isn't Multiple sclerosis = neuromuscular disease


Link:

http://binarysleep.com/phpBB2/viewtopic ... 76d933ce61

by RPSGT88
Those recommendations were originally listed by ResMed:

"Don't Blame Me...You Took the Red Pill..."

User avatar
NotMuffy
Posts: 962
Joined: Wed Sep 16, 2009 6:56 am
Location: Dunno. GPS is dead.

And please correct "initinated"!!

Post by NotMuffy » Sun Jul 03, 2011 5:02 am

Paper_Nanny wrote:...I have no reason to think that In my case, using an ASV is contraindicated because of thoracic restriction.
Let's hold on that until the results of the PFT come back. "Restrictive Lung Disease" has specific objective criteria, namely, a reduction in Total Lung Capacity (TLC), Functional Residual Capacity (FRC), and Residual Volume (RV). "That said", at this point, the aforementioned Pulmonary Mechanics may be a more sensitive measurement of where you are right now.

"That said II", the "avoid" caution was for "Restrictive or neuromuscular disease".

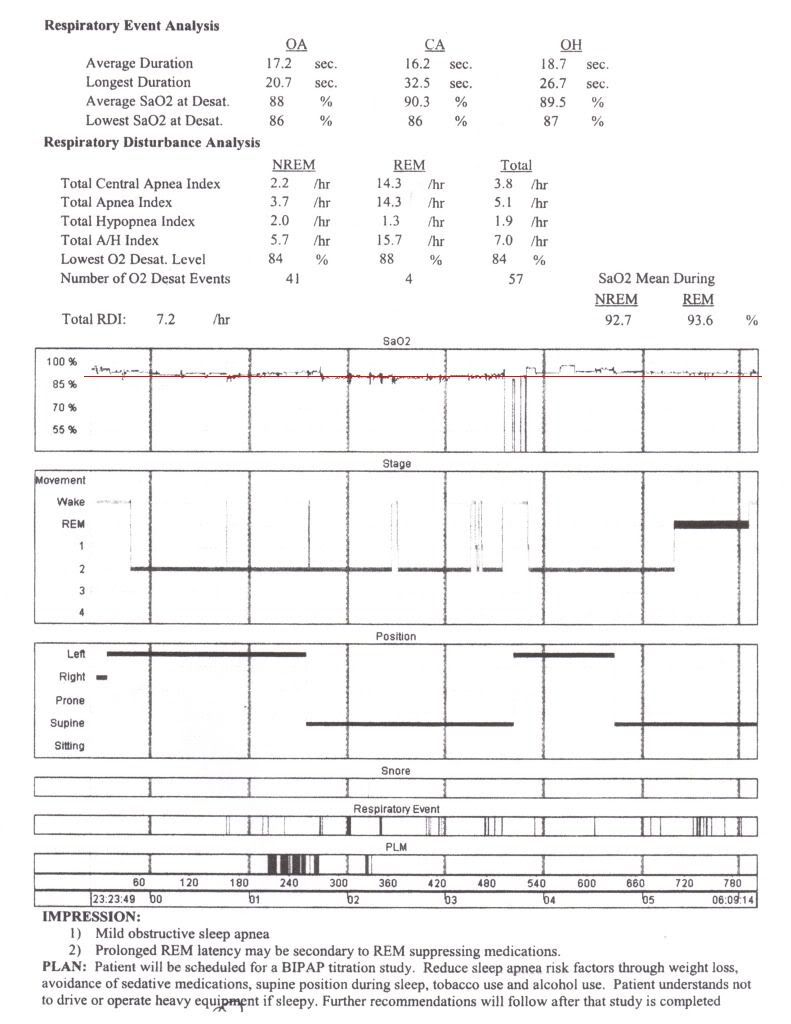

In looking at your original diagnostic study, your overall oxygen saturation level looks low:


The red line approximates the 90% level, which should be considered a key point based on behavior of the oxyhemoglobin dissociation curve.

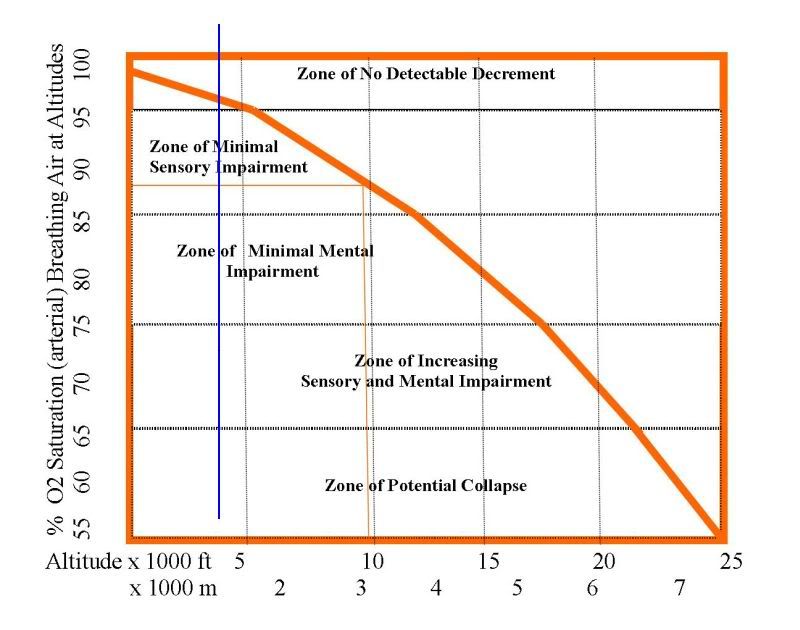

"IMHO", the low baseline cannot be attributed solely to altitude. At 4100 feet, your saturation should still be about 95-96%:

Paper_Nanny wrote:...when I looked at my data from last night... Whoa!!! WTF??? It looks HORRIBLE!!! I am now skeptical about this answer to my problems.

When you think about it, it's not all that different from the ASV:


If ASV is aggressively attacking (it's using breaths as well as IPAP), then the only difference between the two is event identification.

Note to self: Consider low FRC as cause for obvious underlying SDB instability and diffusional impairment for only mild-moderate improvement with aggressive bilevel.
"Don't Blame Me...You Took the Red Pill..."

User avatar
avi123
Posts: 4509
Joined: Tue Dec 21, 2010 5:39 pm
Location: NC

Re: And please correct "initinated"!!

Post by avi123 » Sun Jul 03, 2011 2:14 pm

[quote="NotMuffy"][quote="Paper_Nanny]

In looking at your original diagnostic study, your overall oxygen saturation level looks low.



Last night I had O2 desats similar to Nanny's diagnostic study :



My AHI was similar but not the HI:


Statistics
Serial No.: 22111195209
Product: S9 AutoSet
7/2/2011 - 7/2/2011

Device Settings
Therapy Mode: CPAP Set Pressure: 11.0 cmH2O EPR: Full_Time
EPR Level: 2.0 cmH2O

Leak - L/min
Median: 0.0 95th Percentile: 25.2 Maximum: 38.4
[that dam leak was too hi]

Usage

Total hours used: 4:45 Average daily usage: 4:45


AHI & AI - Events/hr

Apnea index: 9.8
AHI: 13.2
Obstructive: 6.1
Central: 3.7
Unknown: 0.0
Hypopnea index: 3.4

_________________
Humidifier: S9™ Series H5i™ Heated Humidifier with Climate Control
Additional Comments:  S9 Autoset machine; Ruby chinstrap under the mask straps; ResScan 5.6
see my recent set-up and Statistics:
http://i.imgur.com/TewT8G9.png
see my recent ResScan treatment results:
http://i.imgur.com/3oia0EY.png
http://i.imgur.com/QEjvlVY.png

User avatar
BrianinTN
Posts: 435
Joined: Fri Mar 11, 2011 3:46 pm

Re: An answer for low self initinated breathing on ASV??

Post by BrianinTN » Sun Jul 03, 2011 3:12 pm

NotMuffy wrote: Perhaps if your RPSGT friend actually read the Scoring Manual they wouldn't grumble so much.
It's more likely that I misunderstood what he was grumbling about. The "they" was probably his lab, not a reference to AASM.

Anyway, my follow-up question is this: absent having the requisite waveforms and other data, what can you say about the probabilities of the hypopneas being obstructive versus central? I'm phrasing my question this way to get an idea of what the population skews look like. For example, for healthy people with no diagnosed pulmonary or neurological problems, a study consisting of mostly hypopneas is around X% likely for those to be primarily obstructive and (100-X)% likely for those to be primarily central...or something like that.

Why am I asking this silly question? Because in my diagnostic PSG, I had mostly hypopneas, and since they weren't classified, and since my ASV keeps my pressures ridiculously low, I'm wondering how likely it is that they're obstructive.

_________________
Mask: AirFit™ P10 Nasal Pillow CPAP Mask with Headgear
Additional Comments: minEPAP=4, minPS=2

HoseCrusher
Posts: 2744
Joined: Tue Oct 12, 2010 6:42 pm

Re: An answer for low self initinated breathing on ASV??

Post by HoseCrusher » Sun Jul 03, 2011 3:15 pm

Avi, it is interesting that your O2 desaturation events work out to 15.3 per hour and your AHI is 13.2 per hour.

An average of 94.7% is good, but you do have some desaturations below 90%. Fortunately, you don't spend much time below 90%.

It would be interesting to check if your major leaks occurred during the various desaturations below 90%.

_________________
Mask: Brevida™ Nasal Pillow CPAP Mask with Headgear
Additional Comments: Machine is an AirSense 10 AutoSet For Her with Heated Humidifier.
SpO2 96+% and holding...
