Resmed s10 Voltage?

Hey!
I have a airsense 10 from resmed!
However My transformer has died two nights ago, and i have spent 2 days in zombie mode.
I found a s9 om secondhand a while back, where the power suply works, but something else isnt right with it.


The s10 and s9 both require 24v and 3,75A, however the Contact isnt the same!
As I cut my cord i realized, you dont simply have a positive and earth cable but 3 different cords.
I would assume that the centrum pin is earth and then you have one voltage inside the cylinder and another one on the outside!

But if anyone with a s10 could check their Contact , i would really appreciate it!

So s10 voltage between centrum pin and outside of the cylinder
Voltage between centrum pin and inside the cylinder, alternativly inside and outside of the cylinder!
Please let me also know IF centrum pin indeed in Earth!

From this thread:

https://www.cpaptalk.com/viewtopic.php?t=176763

The inner pin is +3.3 volt
The inner cylinder is +24 volt
The outer cylinder is ground

That thread is great if you're info do-it-yourself electronics.

Thanks!!!!!!!!

SweMale-90ResmedS10 wrote: ↑

Mon Aug 23, 2021 6:08 pm

Hey!
I have a airsense 10 from resmed!

Yes, there's no such thing as a S10 from Resmed, a S10 is a small, out of production, Chevy pickup truck.

SweMale-90ResmedS10 wrote: ↑

Mon Aug 23, 2021 6:08 pm

I found a s9 om secondhand a while back, where the power suply works, but something else isnt right with it.

There's nothing wrong with it.

SweMale-90ResmedS10 wrote: ↑

Mon Aug 23, 2021 6:08 pm

The s10 and s9 both require 24v and 3,75A, however the Contact isnt the same!

Why should they be?

palerider wrote: ↑

Mon Aug 23, 2021 6:28 pm

SweMale-90ResmedS10 wrote: ↑

Mon Aug 23, 2021 6:08 pm

Hey!
I have a airsense 10 from resmed!

Yes, there's no such thing as a S10 from Resmed, a S10 is a small, out of production, Chevy pickup truck.

Or a Samsung phone!

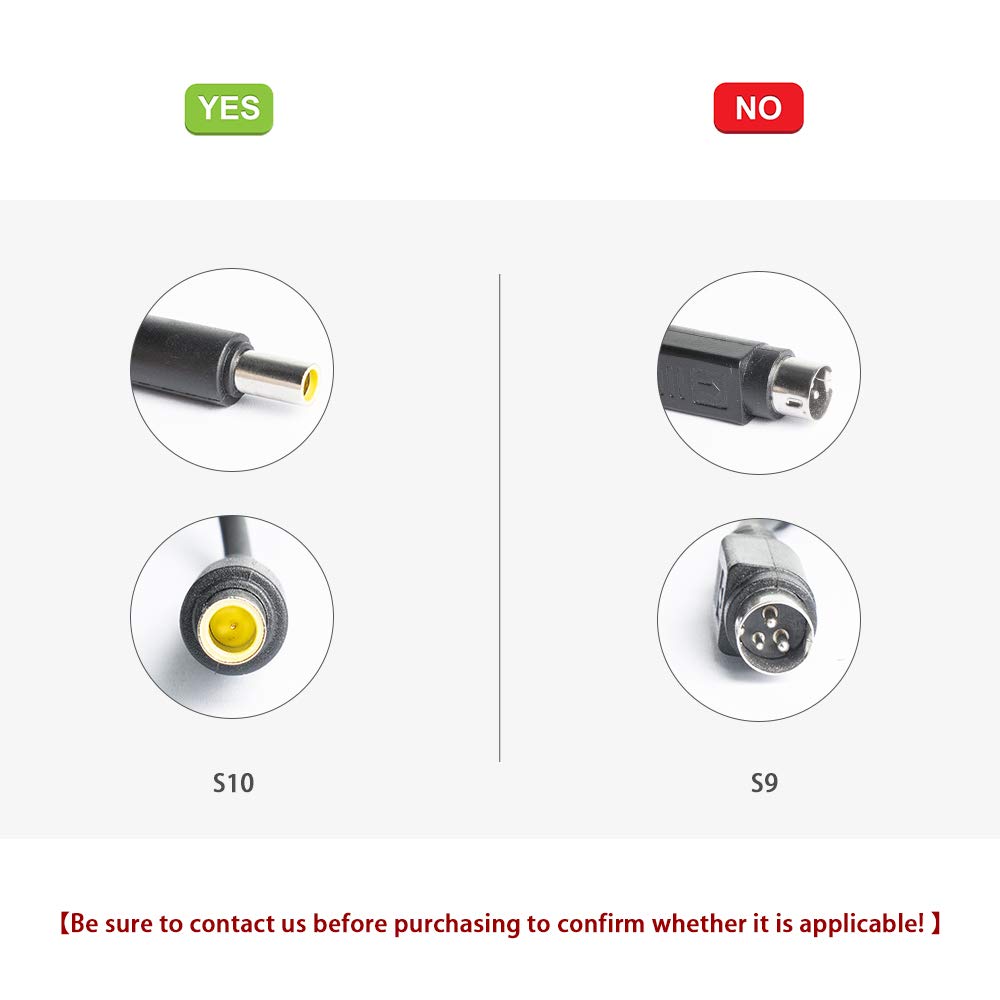

Well, AirSense 10 then, if you look at the image, then Amazon refers to them as s9 and s10

palerider wrote: ↑

Mon Aug 23, 2021 6:28 pm

SweMale-90ResmedS10 wrote: ↑

Mon Aug 23, 2021 6:08 pm

I found a s9 om secondhand a while back, where the power suply works, but something else isnt right with it.

There's nothing wrong with it.

There is most definetly something wrong with the resmed s9 i got from secondhand.

palerider wrote: ↑

Mon Aug 23, 2021 6:28 pm

SweMale-90ResmedS10 wrote: ↑

Mon Aug 23, 2021 6:08 pm

The s10 and s9 both require 24v and 3,75A, however the Contact isnt the same!

Why should they be?

There is No reason for them to be. But i need them to be

Well atleast you found yourself an appropriate avatar!

loggerhead12 wrote: ↑

Mon Aug 23, 2021 6:18 pm

From this thread:

https://www.cpaptalk.com/viewtopic.php?t=176763

The inner pin is +3.3 volt
The inner cylinder is +24 volt
The outer cylinder is ground

That thread is great if you're info do-it-yourself electronics.

Thanks for solving My problem and not being an ass-hat!

SweMale-90ResmedS10 wrote: ↑

Mon Aug 23, 2021 6:51 pm

palerider wrote: ↑

Mon Aug 23, 2021 6:28 pm

SweMale-90ResmedS10 wrote: ↑

Mon Aug 23, 2021 6:08 pm

Hey!
I have a airsense 10 from resmed!

Yes, there's no such thing as a S10 from Resmed, a S10 is a small, out of production, Chevy pickup truck.

Or a Samsung phone!
Well, AirSense 10 then, if you look at the image, then Amazon refers to them as s9 and s1

But Resmed doesn't.

palerider wrote: ↑

Mon Aug 23, 2021 6:54 pm

SweMale-90ResmedS10 wrote: ↑

Mon Aug 23, 2021 6:51 pm

palerider wrote: ↑

Mon Aug 23, 2021 6:28 pm

SweMale-90ResmedS10 wrote: ↑

Mon Aug 23, 2021 6:08 pm

Hey!
I have a airsense 10 from resmed!

Yes, there's no such thing as a S10 from Resmed, a S10 is a small, out of production, Chevy pickup truck.

Or a Samsung phone!
Well, AirSense 10 then, if you look at the image, then Amazon refers to them as s9 and s1

But Resmed doesn't.

I'm sorry you didn't have IQ enough to figure out that i wasnt talking about a Chevy pickup truck

SweMale-90ResmedS10 wrote: ↑

Mon Aug 23, 2021 6:58 pm

I'm sorry you didn't have IQ enough to figure out that i wasnt talking about a Chevy pickup truck

I'd point out that when one is using the wrong terminology to search for answers on the internet, one often receives lower quality results than when one uses the correct terminology, but I'm sure the nuances of that answer would be lost on you, so instead I'll just refrain from responding to any of your insipid postings in the future.

See? you WIN.
