S9 AutoSet Build Date
S9 AutoSet Build Date
How can you tell when your S9 was built?
_________________
Machine: ResMed AirCurve 10 ASV Machine with Heated Humidifier |
Mask: Evora Full Face Mask - Fitpack |
Additional Comments: AirCurve 10 ASV, Oscar V1.0.1-r-1 |
US Navy Retired 1973,AirCurve 10 ASV, Mode: ASV Auto, Min EPAP: 7.2, Max EPAP: 15.0, Min PS:4.0, Max PS: 15.0, Mask ResMed Airtouch F20, Backup: (2) AirCurve 10 ASV
Re: S9 AutoSet Build Date
Why does it matter...the S9 has only been around for about 12-18 months
_________________
Machine: ResMed AirSense™ 10 AutoSet™ CPAP Machine with HumidAir™ Heated Humidifier |
Mask: Fisher & Paykel Vitera Full Face Mask with Headgear (S, M, or L Cushion) |
Additional Comments: Back up is S9 Autoset...... |
Re: S9 AutoSet Build Date
I didn't know how long it has been around and I'm thinking of buying a used one and wanted to know when it was built so I can tell how old it is.
_________________
Machine: ResMed AirCurve 10 ASV Machine with Heated Humidifier |
Mask: Evora Full Face Mask - Fitpack |
Additional Comments: AirCurve 10 ASV, Oscar V1.0.1-r-1 |
US Navy Retired 1973,AirCurve 10 ASV, Mode: ASV Auto, Min EPAP: 7.2, Max EPAP: 15.0, Min PS:4.0, Max PS: 15.0, Mask ResMed Airtouch F20, Backup: (2) AirCurve 10 ASV
Re: S9 AutoSet Build Date
I believe the build date is on the silver stamp label on the back of the machine.
_________________
Machine: ResMed AirSense™ 10 AutoSet™ CPAP Machine with HumidAir™ Heated Humidifier |
Additional Comments: |
Diagnosed 08/31/10. Titration 9/02/10. Started CPAP 11/01/10. Auto mode 10-15cm. Alternate mask GoLife for her. Back up mask Full-life full face w/Pad-a-cheek mask liner. Comtec CMS F50 wrist pulse oximeter. Sobakawa Cloud Pillow, Sleepyhead software
Re: S9 AutoSet Build Date
There is nothing on the plate. I'm thinking it has something to do with the first numbers on the serial number. the first numbers on my machine are 2211 which probably means Feb.2, 2011.
_________________
Machine: ResMed AirCurve 10 ASV Machine with Heated Humidifier |
Mask: Evora Full Face Mask - Fitpack |
Additional Comments: AirCurve 10 ASV, Oscar V1.0.1-r-1 |
US Navy Retired 1973,AirCurve 10 ASV, Mode: ASV Auto, Min EPAP: 7.2, Max EPAP: 15.0, Min PS:4.0, Max PS: 15.0, Mask ResMed Airtouch F20, Backup: (2) AirCurve 10 ASV
- Lizistired
- Posts: 2835
- Joined: Tue Dec 14, 2010 10:47 pm
- Location: Indiana
Re: S9 AutoSet Build Date
You would be better to go into the clinicians menu and check the HOURS used.
_________________
Humidifier: S9™ Series H5i™ Heated Humidifier with Climate Control |
Additional Comments: Swift FX sometimes, CMS-50F, Cervical collar sometimes, White noise, Zeo... I'm not well, but I'm better. |
ResScan: http://www.resmed.com/int/assets/html/s ... c=patients
ResScan Tutorial- http://montfordhouse.com/cpap/resscan_tutorial/
Machines Video: http://www.cpaplibrary.com/machine-education
ResScan Tutorial- http://montfordhouse.com/cpap/resscan_tutorial/
Machines Video: http://www.cpaplibrary.com/machine-education
- chunkyfrog
- Posts: 34545
- Joined: Mon Jul 12, 2010 5:10 pm
- Location: Nowhere special--this year in particular.
Re: S9 AutoSet Build Date
Maybe you can listen to the humidifier for that clicking noise some have mentioned.
That might be a newer humidifier. --but not better.
That might be a newer humidifier. --but not better.
_________________
Mask: AirFit™ P10 For Her Nasal Pillow CPAP Mask with Headgear |
Additional Comments: Airsense 10 Autoset for Her |
Re: S9 AutoSet Build Date
The service screen on the older ones will have a SW (software) SX474-0602, and that is the only thing displayed on that screen.
Newer units on the service screen will have a SW SX474-0903, Followed by a BID SX525-0300, along with VID and RID numbers.
Newer units on the service screen will have a SW SX474-0903, Followed by a BID SX525-0300, along with VID and RID numbers.
_________________
Mask: AirFit™ F10 Full Face Mask with Headgear |
Humidifier: S9™ Series H5i™ Heated Humidifier with Climate Control |
Additional Comments: Machine: S9 VPAP Adapt (eASV) 36037 |
Mode: ASVAuto, Min EPAP: 4, Max EPAP: 15, Min PS: 3, Max PS: 15, Ramp: Off - Original Titration: 18
Re: S9 AutoSet Build Date
I've just bought a new machine, the serial number also starts with 2211, Lot 275184 if that helps.squid13 wrote:There is nothing on the plate. I'm thinking it has something to do with the first numbers on the serial number. the first numbers on my machine are 2211 which probably means Feb.2, 2011.
Cheers,
Mick.
Mick.
Re: S9 AutoSet Build Date
The water chamber has a date and time on it. Hopefully they were packaged at the same time.
_________________
Machine: ResMed AirSense™ 10 AutoSet™ CPAP Machine with HumidAir™ Heated Humidifier |
Mask: Bleep DreamPort CPAP Mask Solution |
Additional Comments: Set to Apap 14.00/20. EPR 3, Climate line hose, Oscar for Mac 1.1.0. Betta.1 |
Re: S9 AutoSet Build Date
I just bought an S9 AutoSet with 79 hours on it for $450. The water tank said March 28, 2010. Got a Swift FX mask with it and slim line hose. Still had all the clear tape on it to protect the surfaces. It was a middle age woman who said her sleep test was horrible and couldn't stand anything on her face. I'll use it for a backup machine.
_________________
Machine: ResMed AirCurve 10 ASV Machine with Heated Humidifier |
Mask: Evora Full Face Mask - Fitpack |
Additional Comments: AirCurve 10 ASV, Oscar V1.0.1-r-1 |
US Navy Retired 1973,AirCurve 10 ASV, Mode: ASV Auto, Min EPAP: 7.2, Max EPAP: 15.0, Min PS:4.0, Max PS: 15.0, Mask ResMed Airtouch F20, Backup: (2) AirCurve 10 ASV
Re: S9 AutoSet Build Date
STL Mark wrote:The service screen on the older ones will have a SW (software) SX474-0602, and that is the only thing displayed on that screen.
Newer units on the service screen will have a SW SX474-0903, Followed by a BID SX525-0300, along with VID and RID numbers.
I got my S9 Autoset brand new in July 2011 and it has SX474-0602 (the older number) on the service screen.
_________________
Mask: AirFit™ P10 Nasal Pillow CPAP Mask with Headgear |
Additional Comments: Backup & Travel Machines: PR System One Bipap Auto, S9 VPAP Auto, S9 Autoset, Oximeter CMS-50E |
Diagnosed March 2011, using APAP 14 - 16.5 cm, AFlex+ 2
Alt masks Swift FX pillows, Mirage FX nasal mask, Mirage Quattro full face mask
Alt masks Swift FX pillows, Mirage FX nasal mask, Mirage Quattro full face mask
Re: S9 AutoSet Build Date

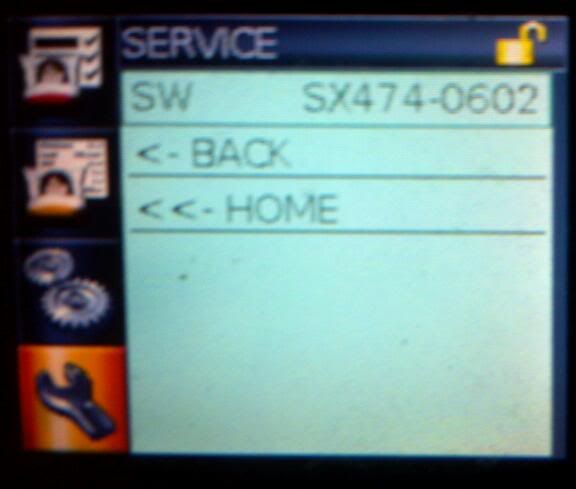

This is what I see on the service screen on an original S9 Autoset:

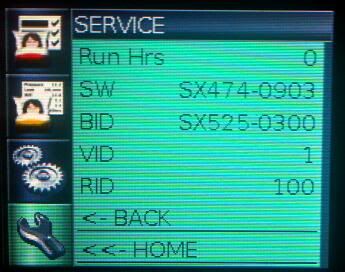

The same screen on a unit shipped in November:

Changes in the service screen would indicate a more recent build date however would not provide an actual date.

The same screen on a unit shipped in November:

Changes in the service screen would indicate a more recent build date however would not provide an actual date.
_________________
Mask: AirFit™ F10 Full Face Mask with Headgear |
Humidifier: S9™ Series H5i™ Heated Humidifier with Climate Control |
Additional Comments: Machine: S9 VPAP Adapt (eASV) 36037 |
Mode: ASVAuto, Min EPAP: 4, Max EPAP: 15, Min PS: 3, Max PS: 15, Ramp: Off - Original Titration: 18
-
- Posts: 165
- Joined: Tue Jan 04, 2011 4:22 pm
Re: S9 AutoSet Build Date
STL Mark wrote:This is what I see on the service screen on an original S9 Autoset:
![]()
The same screen on a unit shipped in November:
Changes in the service screen would indicate a more recent build date however would not provide an actual date.
My ResMed S9 AutoSet manufactured on 10-18-11 in Sydney shows the same information as your 2nd screen above.
But, it also has another line as follows:
HID SX496-0212
Does anyone have any idea what the VID, RID, and HID items are?
As shown on your 2nd screen above and also on my Service screen, the Run Hours have been moved from the "Sleep Report" screen to the "Service" screen.
On the older machine, the Run Hours on the "Sleep Report" screen were in tenths (i.e. 220.7 hours).
Now the Run Hours on the "Service" screen are in whole numbers only (i.e. 221 hours).
Seems like a step backwards to me.
_________________
Humidifier: S9™ Series H5i™ Heated Humidifier with Climate Control |
Additional Comments: ResMed ResScan Software Version 3.16 Do NOT use either Ramp or EPR |
- chunkyfrog
- Posts: 34545
- Joined: Mon Jul 12, 2010 5:10 pm
- Location: Nowhere special--this year in particular.
Re: S9 AutoSet Build Date
Mine is definitely an earlier model; I ordered it from our hosts a year ago yesterday.
I wonder if there's any lookup on release dates of the various machine brands/models; so we can tell what's really OLD;
and how old-especially when shopping for a pre-owned back-up or travel model--or even dealing with any seller.
I wonder if there's any lookup on release dates of the various machine brands/models; so we can tell what's really OLD;
and how old-especially when shopping for a pre-owned back-up or travel model--or even dealing with any seller.
