s9 elite question

[sleepymama]

ok i thought i set it up properly to check my leakage rate, AHI in the morning upon waking. when i hit the info button all i can see is the hrs used last night, AHI, mask fit face (which is normally happy) and that's it. is it possible to set it so that i can see the leakage rate? the only way i have found so far is to take out the SD card and run it through my computer through the software. i don't want to have to take the card out every day to check leakage rate. did i miss doing something when in clinical menu? anyone know? thanks

[rested gal]

viewtopic.php?p=497023#p497023

To get the ResMed S9 machine to display leak data (along with AHI, etc.) in the LCD window, set "Sleep Quality - ON" in the clinical setup menu.

If the correct mask type is selected, the ideal leak rate with a ResMed machine is 0.0.
With a ResMed S9 machine, the leak rate should not be above 24.0 L/min (liters per [/b]minute[/b].)

note to users of the older S8 machines: ResMed S8 machines figure it in liters per [/b]second[/b]. With an S8 machine, the leak rate should be below .40 L/s.

[sleepymama]

As far as i know i do have the sleep quality on, which is why i can finally see the AHi. it wasn't on when i brought the machine home. that's why i was wondering if it was possible to see the leakage on the screen? with the auto you can but the elite i have no idea.

[sleepymama]

lol guess i'm one of the only ones with an elite?

[kempo]

Are you wanting to know how to turn on sleep quality?

[Tovi]

At least on my machine -- an S9 Auto, I have to turn Sleep Quality On and then I have to still be in Clinician Mode to see the Sleep Report which lists my AHI and Leak Rate. In patient mode, I just see my AHI and a smiley face or a frowney face.

[torontoCPAPguy]

Send me your email address by PM and I will send you the clinician manual if you don't already have it. And what the heck are you going to do with all of this information? I just have to ask my wife about my leak data and she tells me how many times I turned on the ensuite light during the night and woke her up. Sufficient leak data for me. I don't ask anymore. Now, what would REALLY be handy is pulse oximetry data for the night! I'd like to know if I stop breathing when my wife whacks me over the head for creating that leak data.

[sleepymama]

i have the clinician manual lol
maybe i have to be in clinician mode in order to see leakage on my machine? i''ll check tomorrow

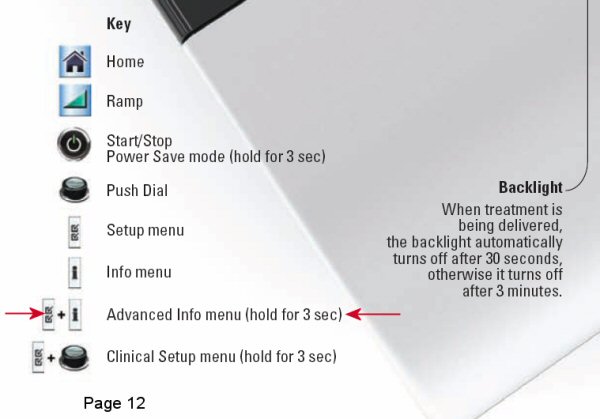

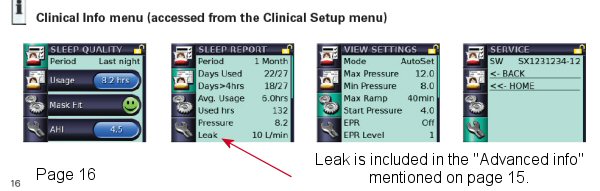

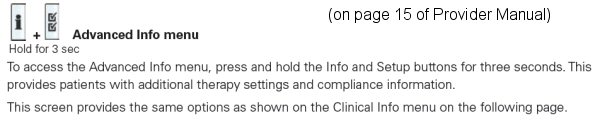

[rested gal]

[sleepymama]

thanks RG. the first screen is the one i see. i guess i have to go further into the system to see the leak rate. i normally just press info and get the AHI, usage, face
thanks.
