I do have a new RESMED S9

[Slinky]

Yeah! All those farts in the recovery room after a colonscopy don't stink either! Some people can really fart up a melody after a colonoscopy! I used to be a wheelchair volunteer at our local hospital which at the time had a recovery "ward" rather than a recovery room for those who just underwent a colonscopy. It was melodious in there on a busy day to say the least!! Toot away, folks, the nurses are delighted to hear them, it means all is probably going well! Music to their ears.

[DragonFire]

Yeah! All those farts in the recovery room after a colonscopy don't stink either! Some people can really fart up a melody after a colonoscopy! I used to be a wheelchair volunteer at our local hospital which at the time had a recovery "ward" rather than a recovery room for those who just underwent a colonscopy. It was melodious in there on a busy day to say the least!! Toot away, folks, the nurses are delighted to hear them, it means all is probably going well! Music to their ears.

Hei,
english is my second language. After posting I tough about making it softer as "passing air from both ends" but that would have sounded so British, so I decide to maintain my poetic approach and leave burp and fart .....

BTW I have got the Rescan 3.10, I downloaded my S9 and now I need to study the charts.

I need to figure out how to post pictures so I can show what the software gives out (hint I do not know how to post pictures ....)

Cheers

Fabio

[KatieW]

Here is a link:

viewtopic/t47041/viewtopic.php?f=1&t=46 ... ot#p413222

Thank you for posting about your S9. I have an S8, and am very interested in your comments.

[Uncle_Bob]

Yeah! All those farts in the recovery room after a colonscopy don't stink either! Some people can really fart up a melody after a colonoscopy! I used to be a wheelchair volunteer at our local hospital which at the time had a recovery "ward" rather than a recovery room for those who just underwent a colonscopy. It was melodious in there on a busy day to say the least!! Toot away, folks, the nurses are delighted to hear them, it means all is probably going well! Music to their ears.

Hei,
english is my second language. After posting I tough about making it softer as "passing air from both ends" but that would have sounded so British, so I decide to maintain my poetic approach and leave burp and fart .....

BTW I have got the Rescan 3.10, I downloaded my S9 and now I need to study the charts.

I need to figure out how to post pictures so I can show what the software gives out (hint I do not know how to post pictures ....)

Cheers

Fabio

I posted some screen shots from rescan 3.10 in this thread (S8 ones first and then S9 ones)

viewtopic/t49289/Rescan-310--Screen-sho ... anual.html

[DreamOn]

Fabio, I would be very interested to see your screen shots from ResScan 3.10, particularly the detailed graphs, showing the data as reported by your S9 machine.

With the S8 series, you had to have the ResLink module in order to see the flattening index, snore index, minute ventilation, and flow data. I'd like to know if the module is also required in order to see that data in ResScan 3.10 software with the S9 machine. I suspect that it is.

~ DreamOn

[DragonFire]

Fabio, I would be very interested to see your screen shots from ResScan 3.10, particularly the detailed graphs, showing the data as reported by your S9 machine.

With the S8 series, you had to have the ResLink module in order to see the flattening index, snore index, minute ventilation, and flow data. I'd like to know if the module is also required in order to see that data in ResScan 3.10 software with the S9 machine. I suspect that it is.

~ DreamOn

DreamOn,

I need to find some web space to upload my screen shot but:
-I installed RESScan 3.10
-I downloaded both my S8 and S9 data flawlessly and combined in a single user file
-The process with the s9 is very easy: insert the SD card in a multicard/USB adapter and Rescan recognize the drive letter and downloads from it
-I get all possible data: flow, pressure, snore index, tag for all events (these are Apnea and hypopnea events classified in obstructive and central: last night I had 2 CNS hypopneas of 11 and 13 seconds ....) and their duration

So I believe the only module you need is the oxymeter if you want saturation (the Tab is there but it is obviously blank).

The nice thing is that the software integrates my travelling machine data (I am using the s8 on travel, reliable and sturdy) and the S9 home, very very silent and comfy .... I was in love with CPAP now I am crazy about it.

Fabio

[DreamOn]

I get all possible data: flow, pressure, snore index, tag for all events (these are Apnea and hypopnea events classified in obstructive and central: last night I had 2 CNS hypopneas of 11 and 13 seconds ....) and their duration

So I believe the only module you need is the oxymeter if you want saturation (the Tab is there but it is obviously blank).

Thanks for that information, Fabio. Very cool that you're able to see the flow and snore data in ResScan 3.10 now with the S9 machine without an additional ResLink module! It's great that it shows the central apneas now too.

[DragonFire]

Ok,

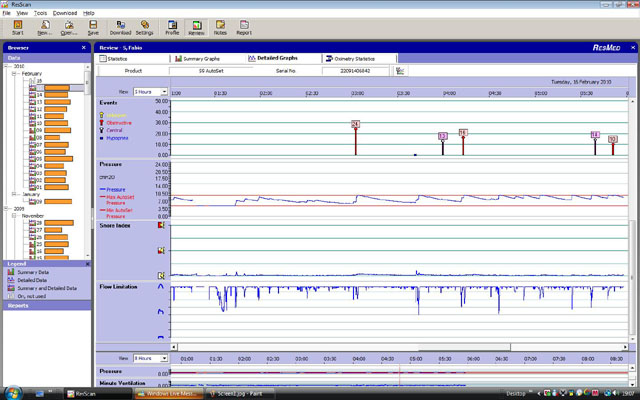

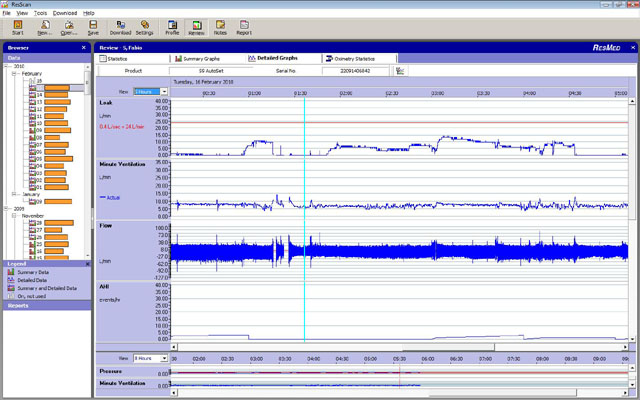

finally I managed to put together a couple of picture of Rescan 3.10 and one of my nights spent with my S9


The two screenshots are the top half and the bottom half of the screen before and after scrolling.
Apologize for the size of the images, but it's the only way to show all the glorious details.

If you wonder about those two breaks at 1 in the morning, I got up on my own first and then one of the kids wanted water ......
Apnea is not the only awakening cause in life

I just realized the pictures get chopped. I am posting smaller size pictures, you might want to download the big ones at the following URL:
http://web.mclink.it/MC6636/Screen1.jpg
http://web.mclink.it/MC6636/screen2.jpg

Cheers

Fabio

Fabio

[KatieW]

Very interesting Screen Shots, thanks.

[DreamOn]

Thanks for posting those screen shots, Fabio!

[DreamDiver]

Thanks for posting about this. It does look slicker than the
System One and seems to do more tricks too. It's got my vote.

When will CPAP.com have the S9 and its oximeter available for purchase?
How much is this thing going to cost?

Will any SD card work, or is there something proprietary about the card?
Is the climate hose available in lengths longer than six feet?
I wouldn't mind seeing an eight or ten foot hose.

[Slinky]

Thanks for posting these, Fabio. I really like the Pressure graph showing the actual pressure between the Min and Max settings. I wonder is that an S9 "thing" or the 3.10 "thing"?

[dsm]

Thanks for posting these, Fabio. I really like the Pressure graph showing the actual pressure between the Min and Max settings. I wonder is that an S9 "thing" or the 3.10 "thing"?

I'll try to take a look tonight. Will be interested to see the old charts (from my Reslink) using 3.10.

Cheers

DSM
