ASV: Hypopnea Index Remains High

General Discussion on any topic relating to CPAP and/or Sleep Apnea.
User avatar
BrianinTN
Posts: 435
Joined: Fri Mar 11, 2011 3:46 pm

ASV: Hypopnea Index Remains High

Post by BrianinTN » Wed May 11, 2011 1:03 pm

I've been on my new PR BiPAP autoSV Advanced for about 10 days now. (Those of you who have followed my other threads know that over the last year I've been fighting to get on the "right" machine, starting first with a CPAP a year ago and then a BiPAP S/T a couple months ago.) I've definitely been more tired after using the ASV (and more prone to take naps) than when I wasn't on any machine at all, so I was eager to finally get the smart card reader that arrived today.

The data confirms that my AHI is still a bit on the high side -- an average just under 8, with of course a lot of nightly variation in it. I was hoping to get some opinions from all of you based on the data. My settings are pretty standard: Min EPAP 4, Max EPAP 15, Min PS 0, Max PS 15, Max Pressure 30, Backup rate auto, Flex setting 2.

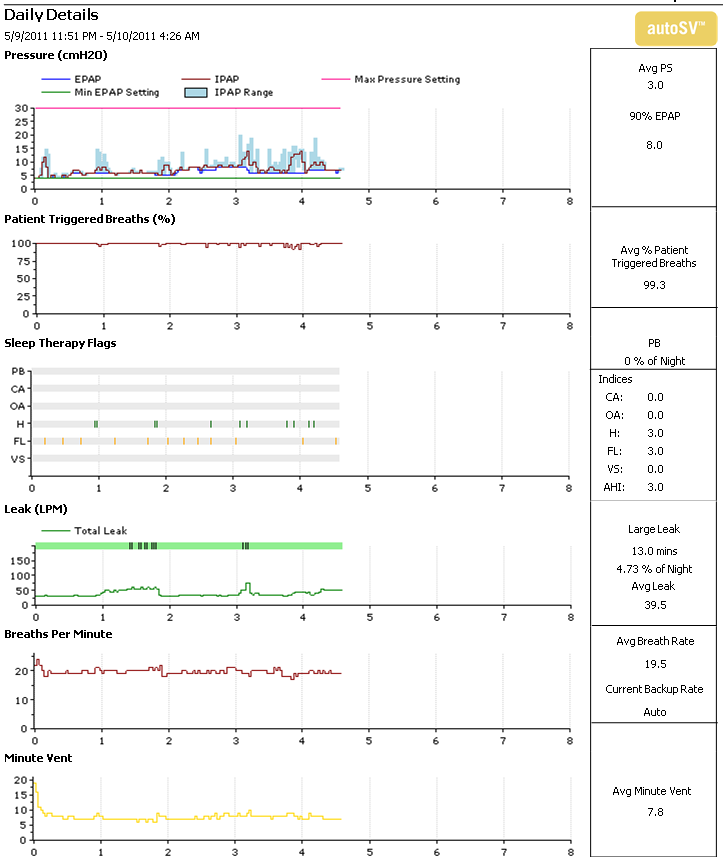

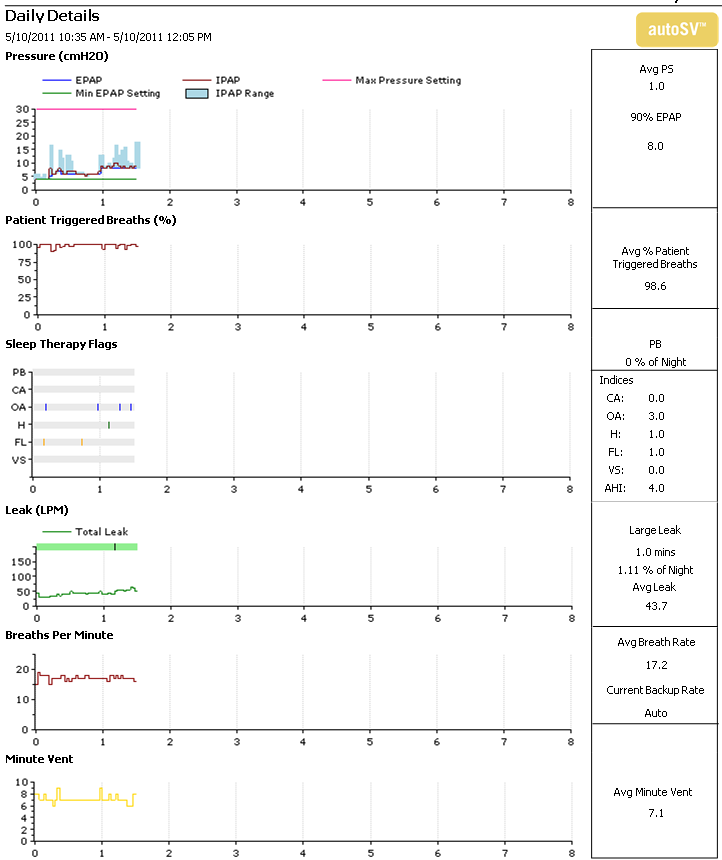

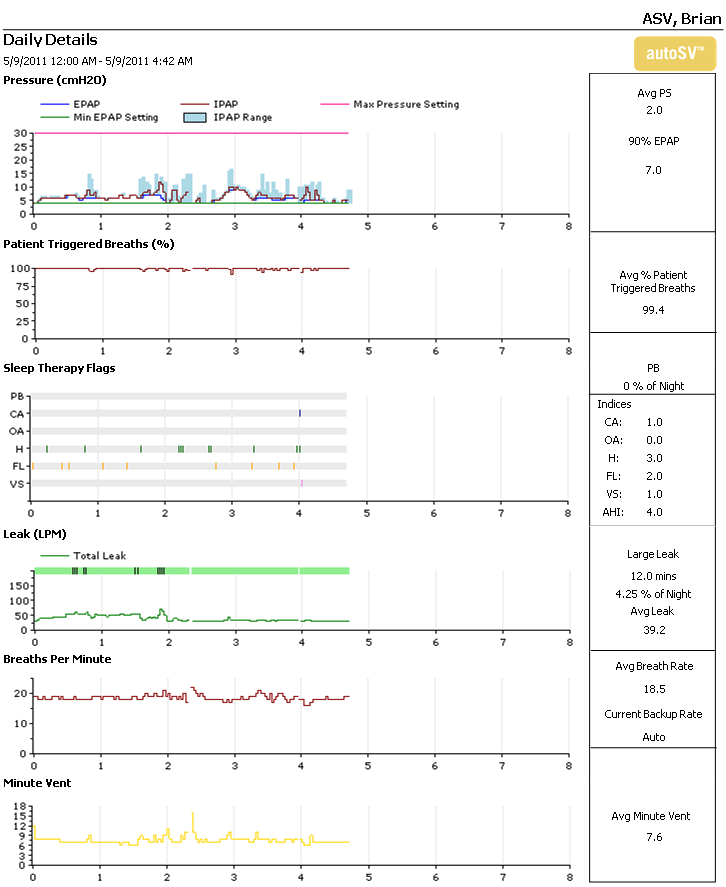

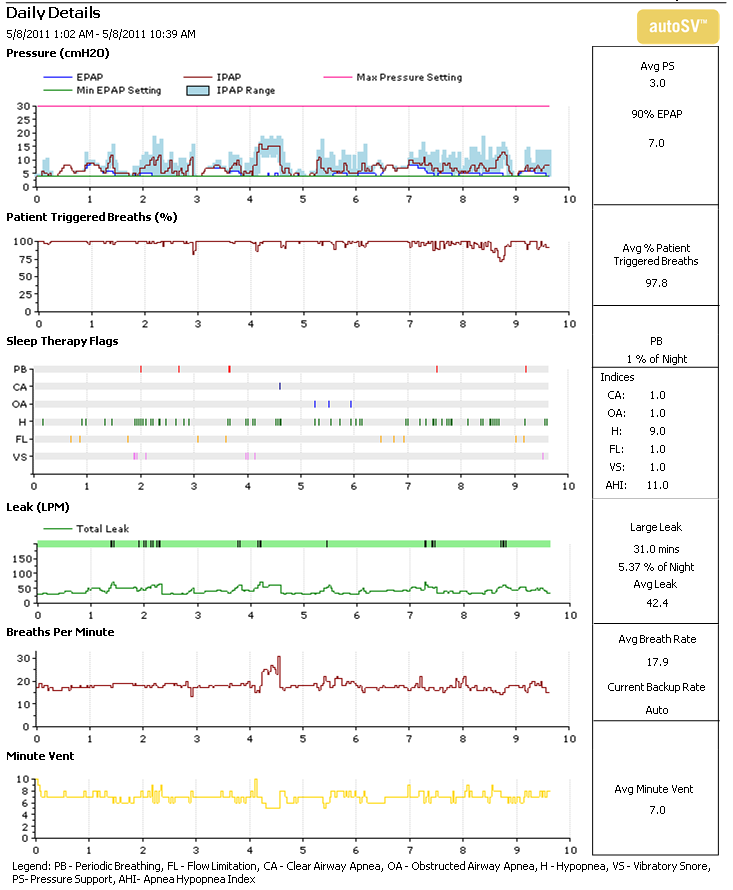

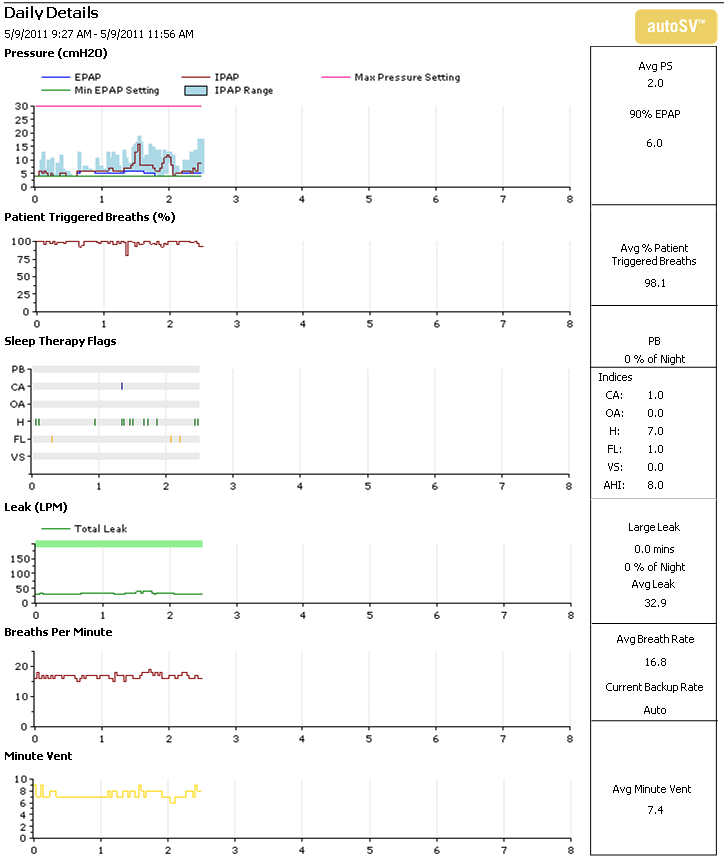

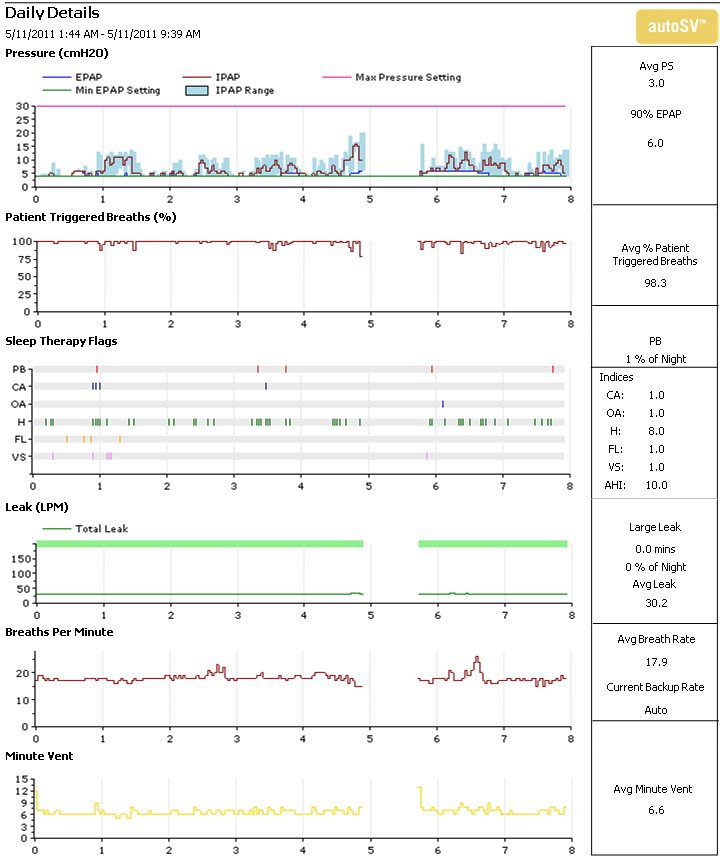

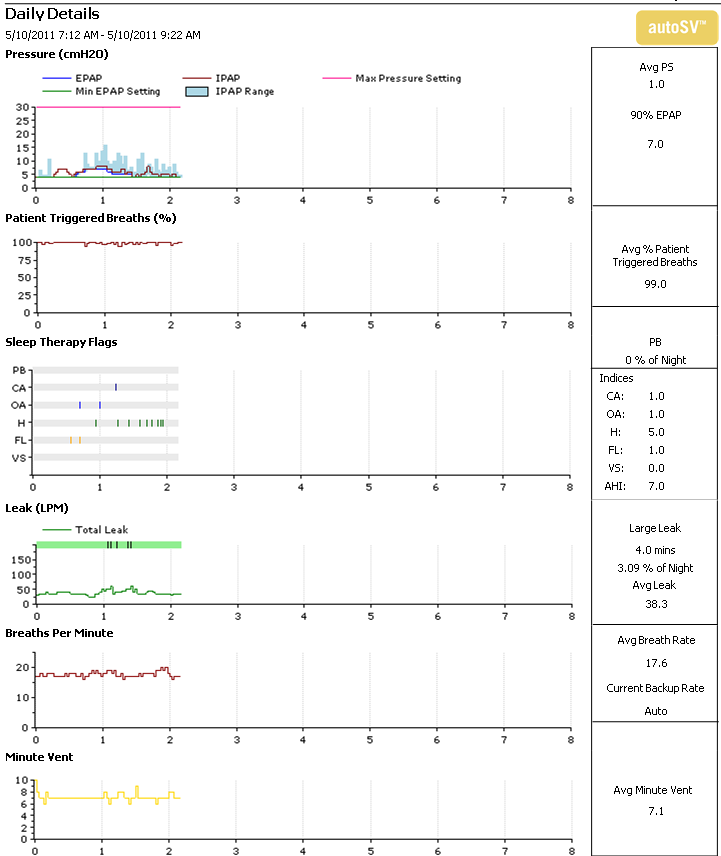

Apologies for the dump of screenshots from Encore below.


_________________
Mask: AirFit™ P10 Nasal Pillow CPAP Mask with Headgear
Additional Comments: minEPAP=4, minPS=2
Last edited by BrianinTN on Thu May 26, 2011 4:23 pm, edited 1 time in total.

User avatar
avi123
Posts: 4509
Joined: Tue Dec 21, 2010 5:39 pm
Location: NC

Re: ASV: AHI still high, suggestions?

Post by avi123 » Wed May 11, 2011 1:37 pm

As I understand it, your AHIs comprise mostly of Hypopneas. In my case by using my APAP, one way to resolve the nature of Hypoapneas, i.e. if Obstructive or Central, is to raise the inspiration pressure somewhat gradually. This should resolve the Obstructive Hypo, leave the Centrals Hypo, and the total Hypopneas should diminish.

_________________
Humidifier: S9™ Series H5i™ Heated Humidifier with Climate Control
Additional Comments:  S9 Autoset machine; Ruby chinstrap under the mask straps; ResScan 5.6
Last edited by avi123 on Thu May 12, 2011 10:00 am, edited 3 times in total.
see my recent set-up and Statistics:
http://i.imgur.com/TewT8G9.png
see my recent ResScan treatment results:
http://i.imgur.com/3oia0EY.png
http://i.imgur.com/QEjvlVY.png

User avatar
JohnBFisher
Posts: 3821
Joined: Wed Oct 14, 2009 6:33 am

Re: ASV: AHI still high, suggestions?

Post by JohnBFisher » Wed May 11, 2011 1:57 pm

Brian, I agree with avi123. It appears most of your AHI score is due to hypopneas. You probably should talk with your sleep doctor about this. It might be you need a slightly higher EPAP pressure to help keep your airway open. But as is true with anyone with an ASV unit, there is a lot to consider (such as, higher pressure can trigger more central apneas). In such cases, it is always advisable to discuss the details with your doctor.

_________________
Mask: Quattro™ FX Full Face CPAP Mask with Headgear
Additional Comments: User of xPAP therapy for over 20 yrs. Resmed & Respironics ASV units with EEP=9cm-14cm H2O; PSmin=4cm H2O; PSmax=15cm H2O; Max=25cm H2O
"I get up. I walk. I fall down. Meanwhile, I keep dancing” from Rabbi Hillel
"I wish to paint in such a manner as if I were photographing dreams." from Zdzisław Beksiński

User avatar
BrianinTN
Posts: 435
Joined: Fri Mar 11, 2011 3:46 pm

Re: ASV: AHI still high, suggestions?

Post by BrianinTN » Wed May 11, 2011 2:07 pm

Yes, this is correct. This was unfortunately my problem with the BiPAP S/T as well.

_________________
Mask: AirFit™ P10 Nasal Pillow CPAP Mask with Headgear
Additional Comments: minEPAP=4, minPS=2

Guest

Re: ASV: AHI still high, suggestions?

Post by Guest » Wed May 11, 2011 2:55 pm

BrianinTN wrote: My settings are pretty standard: Min EPAP 4, Max EPAP 15, Min PS 0, Max PS 15, Max Pressure 30, Backup rate auto, Flex setting 2.
My guess is running the autoSV on straight auto mode, as indicated by your current settings, isn't an effective modality to address your hypopnea. You could trial Min PS 3, tonight. You may also entertain Max Pressure 25.

User avatar
BrianinTN
Posts: 435
Joined: Fri Mar 11, 2011 3:46 pm

Re: ASV: AHI still high, suggestions?

Post by BrianinTN » Wed May 11, 2011 3:54 pm

This is the second time things looked amazing in the lab but not quite so hot at home.

I understand the argument behind increasing min PS (somewhat, anyway), but what's gained by lowering the max pressure to 25? From the graphs, it never gets close to that high as it is.

_________________
Mask: AirFit™ P10 Nasal Pillow CPAP Mask with Headgear
Additional Comments: minEPAP=4, minPS=2

StillAnotherGuess
Posts: 132
Joined: Sat Apr 23, 2011 4:26 pm

Re: ASV: AHI still high, suggestions?

Post by StillAnotherGuess » Wed May 11, 2011 5:28 pm

BrianinTN wrote:but what's gained by lowering the max pressure to 25? From the graphs, it never gets close to that high as it is.
Your device will run more efficiently and provide longer device life at lower Max Pressure. You could happily set Max Pressure 20. People on this board love to run there devices at the highest possible Max Pressure. It tears these machines up, as has been demonstrated many times with run-away pressures and burnt-out machines, by many forum users. Running your device at Max Pressure 30 is almost as dumb as the person who set your device parameters to run on 'Auto'.

_________________
Mask: Quattro™ FX Full Face CPAP Mask with Headgear
Additional Comments: S9 Adapt for Home and Travel, On-Board Firmware, Std. Tubing. EEP 9.8, Min PS 4.6, Max Pressure 21

User avatar
BrianinTN
Posts: 435
Joined: Fri Mar 11, 2011 3:46 pm

Re: ASV: AHI still high, suggestions?

Post by BrianinTN » Wed May 11, 2011 5:44 pm

Deleted

_________________
Mask: AirFit™ P10 Nasal Pillow CPAP Mask with Headgear
Additional Comments: minEPAP=4, minPS=2
Last edited by BrianinTN on Sun May 15, 2011 4:39 pm, edited 1 time in total.

StillAnotherGuess
Posts: 132
Joined: Sat Apr 23, 2011 4:26 pm

Re: ASV: AHI still high, suggestions?

Post by StillAnotherGuess » Wed May 11, 2011 5:52 pm

BrianinTN wrote:As for tinkering with min PS, should I start lower (say at 2), or is 3 a better place to start for a particular reason?
I agree with you. I'm guessing you could start at Min PS 1 for tonight. Perhaps raise Min PS progressively by 1cmH2O each subsequent night and observe what happens with the hypopneas. It's a start..

_________________
Mask: Quattro™ FX Full Face CPAP Mask with Headgear
Additional Comments: S9 Adapt for Home and Travel, On-Board Firmware, Std. Tubing. EEP 9.8, Min PS 4.6, Max Pressure 21

StillAnotherGuess
Posts: 132
Joined: Sat Apr 23, 2011 4:26 pm

Re: ASV: AHI still high, suggestions?

Post by StillAnotherGuess » Wed May 11, 2011 6:06 pm

BrianinTN wrote:Flex setting 2.
Turn Flex off. At your low pressures you need flex like you need a hole-in-the-head.

_________________
Mask: Quattro™ FX Full Face CPAP Mask with Headgear
Additional Comments: S9 Adapt for Home and Travel, On-Board Firmware, Std. Tubing. EEP 9.8, Min PS 4.6, Max Pressure 21

User avatar
BrianinTN
Posts: 435
Joined: Fri Mar 11, 2011 3:46 pm

Re: ASV: AHI still high, suggestions?

Post by BrianinTN » Wed May 11, 2011 6:37 pm

OK. Believe it or not, they titrated me at 20/16 on the BiPAP.

_________________
Mask: AirFit™ P10 Nasal Pillow CPAP Mask with Headgear
Additional Comments: minEPAP=4, minPS=2

StillAnotherGuess
Posts: 132
Joined: Sat Apr 23, 2011 4:26 pm

Re: ASV: AHI still high, suggestions?

Post by StillAnotherGuess » Wed May 11, 2011 7:00 pm

BrianinTN wrote:OK. Believe it or not, they titrated me at 20/16 on the BiPAP.
The best part of having an ASV device with your own data capability is that you can retire your sleep doctor, forever.

_________________
Mask: Quattro™ FX Full Face CPAP Mask with Headgear
Additional Comments: S9 Adapt for Home and Travel, On-Board Firmware, Std. Tubing. EEP 9.8, Min PS 4.6, Max Pressure 21

User avatar
ozij
Posts: 10437
Joined: Fri Mar 18, 2005 11:52 pm

Re: ASV: AHI still high, suggestions?

Post by ozij » Wed May 11, 2011 11:20 pm

Please note that "StillAnotherGuesS" is a
very very
new poster. S/He is not the poster known as "StillAnotherGuesT".
StillAnotherGuesS wrote:
BrianinTN wrote:but what's gained by lowering the max pressure to 25? From the graphs, it never gets close to that high as it is.
Your device will run more efficiently and provide longer device life at lower Max Pressure. You could happily set Max Pressure 20. People on this board love to run there devices at the highest possible Max Pressure. It tears these machines up, as has been demonstrated many times with run-away pressures and burnt-out machines, by many forum users. Running your device at Max Pressure 30 is almost as dumb as the person who set your device parameters to run on 'Auto'.
If the machine does not get to the higher pressure, it won't get "burned out". I would never trust a poster who registered 2 weeks ago on statements about what "has been demonstrated many times" or about "many forum users".

As a matter of fact, I would automatically distrust any posting by a poster who chooses a name so similar to a well known well respected other poster on the forum.


Caveat emptor.

_________________
Mask: AirFit™ P10 Nasal Pillow CPAP Mask with Headgear
Additional Comments: Machine: Resmed AirSense10 for Her with Climateline heated hose ; alternating masks.
And now here is my secret, a very simple secret; it is only with the heart that one can see rightly, what is essential is invisible to the eye.
Antoine de Saint-Exupery

Good advice is compromised by missing data
Forum member Dog Slobber Nov. 2023

User avatar
rested gal
Posts: 12881
Joined: Thu Sep 09, 2004 10:14 pm
Location: Tennessee

Re: ASV: AHI still high, suggestions?

Post by rested gal » Wed May 11, 2011 11:52 pm

Thank you for saying everything you did, ozij.

The "Guess" person may think it was funny to register the name he/she did, but it's not.

Not funny. Not good advice. And not the poster known and respected here as "StillAnotherGuest."
ResMed S9 VPAP Auto (ASV)
Humidifier: Integrated + Climate Control hose
Mask: Aeiomed Headrest (deconstructed, with homemade straps
3M painters tape over mouth
ALL LINKS by rested gal:
viewtopic.php?t=17435

User avatar
avi123
Posts: 4509
Joined: Tue Dec 21, 2010 5:39 pm
Location: NC

Re: ASV: AHI still high, suggestions?

Post by avi123 » Thu May 12, 2011 10:15 am

I have used the Fisher & Paykel #432 full face, as you do, for a few weeks and had high leak rates with it like you (above 30 L/min). I think that the solid foam under the Silicone cushion caused it. So I changed to full face #431 (without the foam), in medium size, and it works much better. The leak dropped to below 10 L/min. But I keep the headgear straps quite tight. Especially, the lower ones. I can slide my index finger between the strap and my cheek easily but not my thumb. After switching the pressure ON, I adjust the mask by lifting it off my self severel times.

_________________
Humidifier: S9™ Series H5i™ Heated Humidifier with Climate Control
Additional Comments:  S9 Autoset machine; Ruby chinstrap under the mask straps; ResScan 5.6
see my recent set-up and Statistics:
http://i.imgur.com/TewT8G9.png
see my recent ResScan treatment results:
http://i.imgur.com/3oia0EY.png
http://i.imgur.com/QEjvlVY.png
